Compressor

2018+ Softail Compressor/Q-PaK mounting bracket Kit

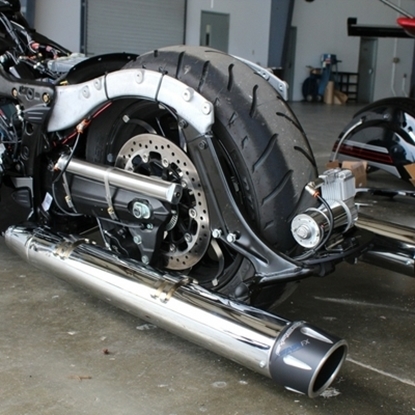

Air reservoir is used to store compressed air. Included in instant-up kit. Tank comes with the fittings installed, sealed and leak tested. A 5/32OD tube tee is provided to connect into your system. Tank is rated 250PSI.

Air reservoir is used to store compressed air. Included in instant-up kit. Tank comes with the fittings installed, sealed and leak tested. A 1/4 OD tube tee is provided to connect into your system. Tank is rated 250PSI.

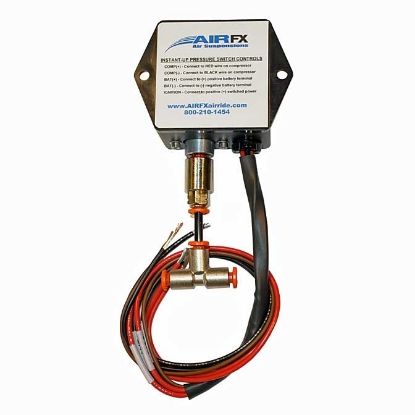

Pressure switch and relay sub-assembly. Pressure switch preset to 250PSI. Wiring includes ignition circuit interlock. Control will turn on the compressor until the sensed pressure reaches 250psi and will shut off. Compressor will turn back on at 230psi. SPECIFY FXA-2000 HI FLOW COMPRESSOR, the standard compressor will not work with this module.

Pressure switch and relay sub-assembly. Pressure switch preset to 190PSI. Wiring includes ignition circuit interlock. Control will turn on the compressor until the sensed pressure reaches 190psi and will shut off. Compressor will turn back on at 170psi.
